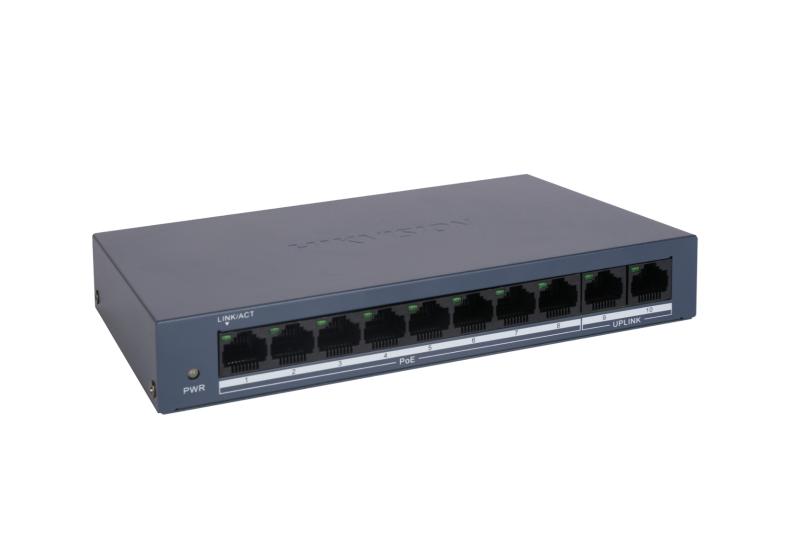

HIKVISION 8 PORT POE DS-30110MP-E/M

8 Port Fast Ethernet Unmanaged POE Switch

The Hikvision DS-3E0110MP-E/M is a reliable 10-port unmanaged PoE switch designed for CCTV surveillance and networking applications. Featuring 8 PoE ports, long-range transmission support, and intelligent power management, it provides stable power and data connectivity for IP cameras, NVRs, and security systems.

10-port Fast Ethernet unmanaged PoE switch
8 × 10/100 Mbps PoE ports
2 × uplink Ethernet ports
Supports IEEE 802.3af/at PoE standards
Total 110W PoE power budget
Up to 300m long-range PoE transmission
Intelligent PoE functions:
- PoE watchdog
- Port isolation
- Loop prevention
Plug-and-play installation
Surge & overload protection
Durable metal housing design

The Hikvision DS-3E0110MP-E/M is a professional-grade 10-port Fast Ethernet unmanaged PoE switch built for modern IP surveillance and networking environments. It features 8 × 10/100 Mbps PoE ports and 2 × uplink Ethernet ports, allowing seamless connectivity for IP cameras, NVRs, wireless access points, and other network devices.

Supporting the IEEE 802.3af/at PoE standards, this switch delivers both power and data through a single Ethernet cable, simplifying installation and reducing wiring costs for CCTV projects. With a total PoE power budget of 110W, it provides stable and efficient power delivery for multiple surveillance devices.

The DS-3E0110MP-E/M supports Hikvision’s extended transmission mode, enabling PoE transmission distances up to 300 meters, making it ideal for long-distance CCTV deployments in offices, shops, warehouses, schools, parking areas, and commercial buildings.

Designed for easy deployment, the switch offers true plug-and-play operation without requiring configuration. It also includes intelligent PoE management features such as:

PoE watchdog
Port isolation
Loop prevention
Surge protection
Overload protection

These features help improve network stability and maintain continuous camera operation.

Built with a durable metal housing for efficient heat dissipation and long-term reliability, the switch is suitable for 24/7 professional surveillance applications.
