Camera |
|
| Image Sensor | 5MP 3K CMOS |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
Lens |
|
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length ＆ FOV | Horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° |
| Lens Mount | M12 |
Illuminator |
|
| Supplement Light Type | White Light, IR |
| Supplement Light Range | IR: Up to 25 m White Light: Up to 20 m |
Image |
|
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC |
| Day/Night Mode | IR / White Light |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | Yes |
| White Balance | Auto/Manual |
| AGC | Yes |
Interface |
|
| Video Output | Switchable TVI / AHD / CVI / CVBS |
General |
|
| Material | Plastic |
| Dimension | 84.6 mm × Ø85.02 mm (3.33″ × Ø3.35″) |
| Weight | Approx. 160 g (0.35 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or Less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Consumption | Max. 2.9 W |
Approval |
|
| Protection | IP66 |
HIKVISION

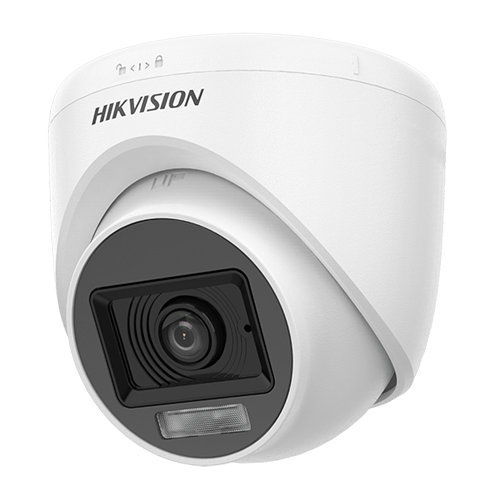

HIKVISION 5MP 3K DS-2CE76KOT-LPFS DUAL LIGHT
Dual Light Audio Camera
5MP (2960 (H) × 1665 (V)) 3K Dual Light Audio Indoor Fixed Turret Camera
IR Range
Up to 20m IR distance for bright night imaging
Frame Rate
3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps@25fps
White Light
Up to 20m white light distance for bright night imaging
Video Output Mode
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Field Of View
Horizontal FOV: 104.9°, Vertical FOV: 67.3°, Diagonal FOV: 129.8°
