Camera |
|
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s, NTSC: 1/15 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
Lens |
|
| Lens Type | 2.8 mm fixed lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 127°; |
| Lens Mount | M12 |
Microphone |
|
| Pickup Distance | In a radius of up to 5 m |
| Speaker | |
| Rated Power | 2 W |
| Speaker Range | In a radius of up to 5 m |
Illuminator |
|
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 40 m, White Light: Up to 40 m |
Image |
|
| Image Settings | Anti-banding, Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080p @25 fps/30 fps |
| Day/Night Mode | Auto/Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global HLS |
| Noise Reduction | 2D DNR |
| White Balance | Auto,
Manual |
Audio |
|
| Audio Function | Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
Interface |
|
| Video Output | 1 HD analog output |
| Alarm | Flashing Light Alarm |
General |
|
| Power | 12 VDC ± 25%, max. 8.5 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required. |
| Material | Main body: Metal; Enclosure: Plastic |
| Dimension | Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″) |
| Weight | Approx. 385 g (0.85 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
Approval |
|
| Protection | IP67 |
CCTV Camera
HIKVISION 2MP DS-2CE78D0T-LXTS TWO WAY AUDIO & SIREN
Two Way Audio & Siren Fixed Turret Camera

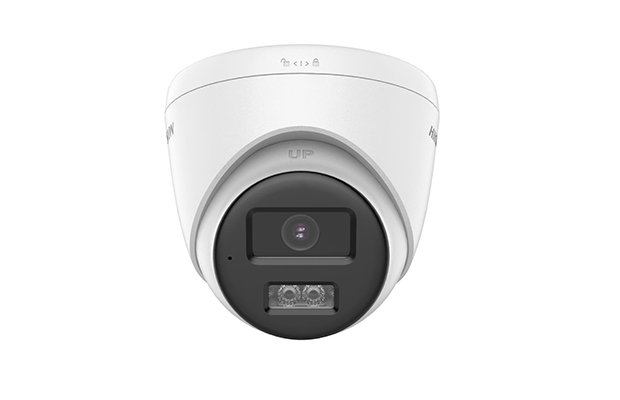

Hikvision DS-2CE78D0T-LXTS 2MP Two Way Audio & Siren Fixed Turret Camera
Supplement Light
IR: Up to 40m, White Light: Up to 40m
Frame Rate
TVI: 1080p @25 fps/30 fps
Audio
High quality audio with audio over coaxial cable, built-in mic & built-in speaker
Image Enhancement
DWDR, BLC, HLC, Global, HLS
Field Of View
2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 127°
