Specifications |
|
|---|---|
| Model | CS-T1C-A0-BG |
General |
|
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing) |
| Dimensions | Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch) |
| Package Size | 92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch) |
| Weight | 92 g (3.2 oz) with package |
Detection |
|
| Detection Type | Passive infrared (PIR) |
| Detection Distance | Up to 7 m / 23 ft |
| Detection Angle | 90° horizontal, 90° vertical |
| Recommended Installation Height | 1.8 to 2.5 m for wall-mounted installation |
| Pet-Proof Detection | Requires using the pet shield and an installation height of 50 cm or higher above the pet |
Function |
|
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Methods | Adhesive back with magnetic parts. Supports wall and ceiling flip-over installation |
Battery |
|
| Battery Type | Cell battery CR2450 |
| Battery Life | High-performance mode: Up to 1 year Energy-saving mode: Up to 2 years |
Network |
|
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
In the box |
|
| In the box | – T1C PIR Sensor |
| – Pet Shield | |
| – Doubled-sided Tape | |
| – Regulatory Information | |
| – Quick Start Guide | |
Certifications |
|
| Certifications | CE / FCC / RoHS / REACH / WEEE / UKCA |
EZVIZ

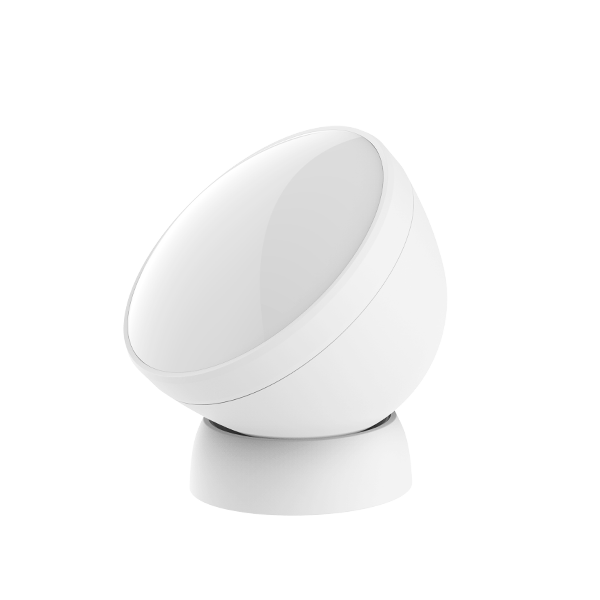

EZVIZ T1C PIR MOTION SENSOR
Know when there’s activity at home.
- Requires the EZVIZ Home Gateway A3
- App features
- Wide-Angle Detection
- Adjustable 360°
- Human Motion Detection
- Anti-Tamper Alarm
- Peel-and-Stick Installation
- Instant Alerts via EZVIZ App
- Energy-Saving Design With Long Battery Life
- Smart Integration With EZVIZ Cameras
Get notified immediately when someone sets foot in your room. EZVIZ’s new T1C motion sensor uses passive infrared (PIR) technology to detect human movement, and can send alerts right to your smartphone. The T1C Sensor connects to your EZVIZ Home Gateway, and is mini-sized to fit onto any wall or corner for an easy DIY security solution.
