Specifications |
|
|---|---|

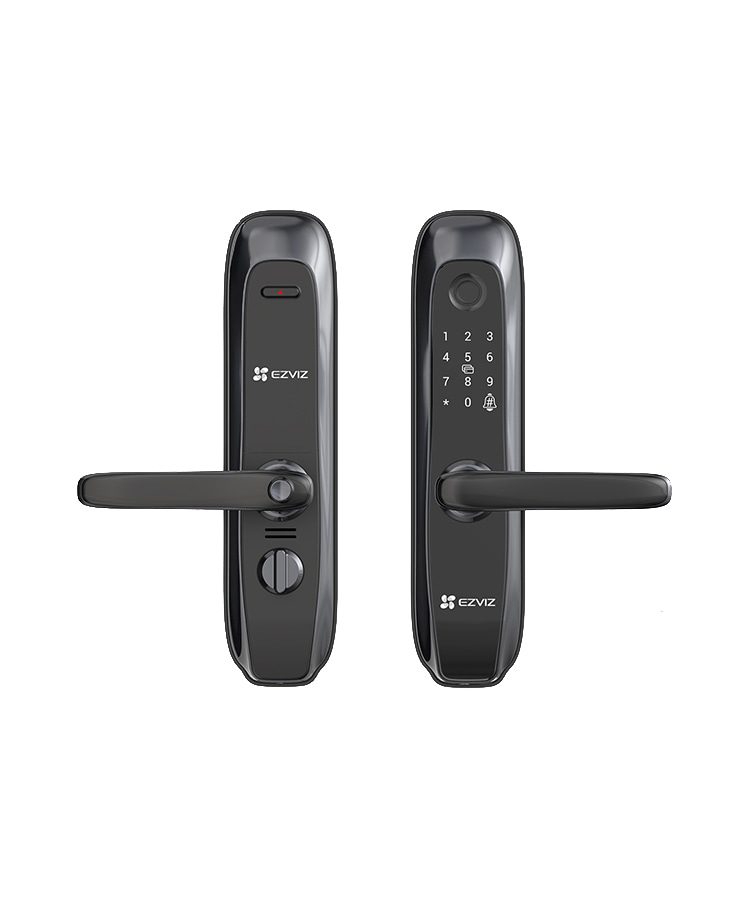

| Model | CS-L2-11FCP (A0) (Black) |
Technical Parameters |
|
| Access Modes | Fingerprint, Password, Proximity Card (CPU Card), Mechanical Key |
| Fingerprint Sensor | Semiconductor |
| Fingerprint Scanner Resolution | 508 Dpi |
| Fingerprint Recognition Angle | 360° |
| Fingerprint Capacity | 50 |
| Password Capacity | 50 |
| Number of Proximity Card | 50 |
| Proximity Card Read Range | 0 to 8 mm (0 to 0.31 inch) |
| Function | |
| Scramble Code | Supports (the correct password is 6 to 10 digits, and the anti-peeping password should be less than 20 digits) |
| Anti-Prying Alarm | Supports |
| Low Voltage Alarm | Supports |
| Continuous Incorrect Password Protection | Supports (the lock will be automatically locked for 3 minutes if the recognition fails 5 times within 5 minutes, including fingerprint, password and proximity card) |
Applicability |
|
| Applicable Types of Doors | Iron door / wooden door |
| Applicable Door Thickness | 40 to 110 mm (1.57 to 4.33 inch) |
General |
|
| Panel Material | Aluminum Alloy |
| Color | Black |
| Lock Body Type | Double-Quick Mechanical Lock Body |
| Clutched Lever | Supports |
| Lock core level | C-Level |
| Battery Type | 4 AA alkaline batteries (included) |
| Battery Life | 10 months (average 10 times per day) |
| Emergency Power Interface | Micro USB |
| Panel Dimensions | 307 x 74 x 32 mm (12.08 x 2.91 x 1.26 inch) |
| Package Dimensions | 418 x 255 x 157 mm (16.46 x 10.04 x 6.18 inch) |
| Net Weight | 1785 g (62.96 oz) |
| Gross Weight | 3935 g (138.80 oz) |
Operating Environment |
|
| Temperature | -30°C to 70°C(-22°F to 158°F) |
| Humidity | 10% to 95% (non-condensing) |
In the box: |
|
| In the box: | – Front Panel – Rear Panel – Lock Body – AA alkaline battery × 4 – Proximity Card × 2 – Mechanical Key × 2 – Square Rod – Standard Screw Bag – Lock Body Screw Bag – Drilling Template – Quick Start Guide |
Certifications: |
|
| Certifications: | CE-EMC / CE-RoHS / CE-LVD / FCC / CE14846 |
