Specifications |
|
| Model | CS-HP5-R100-1W2TFC |
Outdoor Doorbell |
|
| Image Sensor | 1/2.7″ Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F1.6, viewing angle: 134° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution | 1920 × 1080 (1080p) |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
Connection and Function |
|
| Connection Method | Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
| Transmission Distance | Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
| Open the door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
| Door Open Methods | 1.RFID badge unlock (CPU card × 2 pcs) 2.App remote unlock 3.Indoor display unlock |
Outdoor Doorbell Interface |
|
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Doorbell Button | 1 doorbell button (Can be set to become illuminated or not). |
| Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
Functions |
|
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
General |
|
| Operation Conditions | -30°C to 60°C , Humidity 95% or less (non-condensing) |
| IP Grade | Waterproof, with shield cover |
| Size | 153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch) |
Interior Display |
|
| Display size | 7” touch screen |
| Resolution | 1024 × 600 |
Interface |
|
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen On / Off Button |
| Terminal | Two wiring ports to connect 1st outdoor doorbell. |
| Storage | Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
Network Parameters |
|
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Connect Protocol |
Wi-Fi Parameters |
|
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
Function |
|
| Multiple ringtones | Up to 20 ringtones |
| Functions | Live view, playback, two-way talk, video call |
General |
|
| Operation Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
| Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
| Power Supply | DC 24V 1.5A power supply, adaptor (100-240Vac) |
| Power Consumption | 8W, Max. 24W |
Products Weight (HP5) |
|
| Net Weight | 639g (22.54oz) |
| With Package | 1505g (53.09 oz) |
EZVIZ

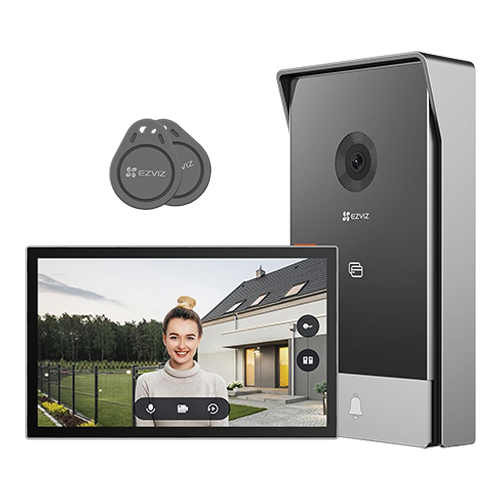

EZVIZ HP5 VIDEO DOORPHONE
Ezviz HP5 Smart Home Video Doorphone
- Outdoor Doorbell: 1/2.7″ Progressive Scan CMOS, 1920 × 1080 (1080p)
- 7-Inch Color Touch Screen, Remote Door/Gate Unlock
- Wired connection (2-Wired)
- Remote Control via the EZVIZ App
- Two-Way Talk (Supports voice changer feature)
- Built-In Doorbell with Multiple Ringtones
- Smart RFID Unlock (2 tags included)
- Weatherproof Design
- Supports Dual-Band Wi-Fi 6 (2.4 / 5 GHz)
- Supports MicroSD Card
- 2D / 3D DNR, Tamper Alarm
- Built-in high-sensitivity microphone
- Built-in high-power speaker
- DC 24V 1.5A power supply
- adaptor (100-240VAC)
