Camera |
|
|---|---|
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day / Night Switch | IR-Cut filter with auto-switching |
Video & Audio |
|
| Max. Resolution | 1080p, 1920 × 1080 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
Network |
|
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
General |
|
| Dimensions | 72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch) |
| Package Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight | Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz) |
| IP Grade | IP67 |
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
Function |
|
| Detection | AI-Powered Human Shape Detection, Motion Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant, IFTTT |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
Storage |
|
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
Power |
|
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 6W |
EZVIZ

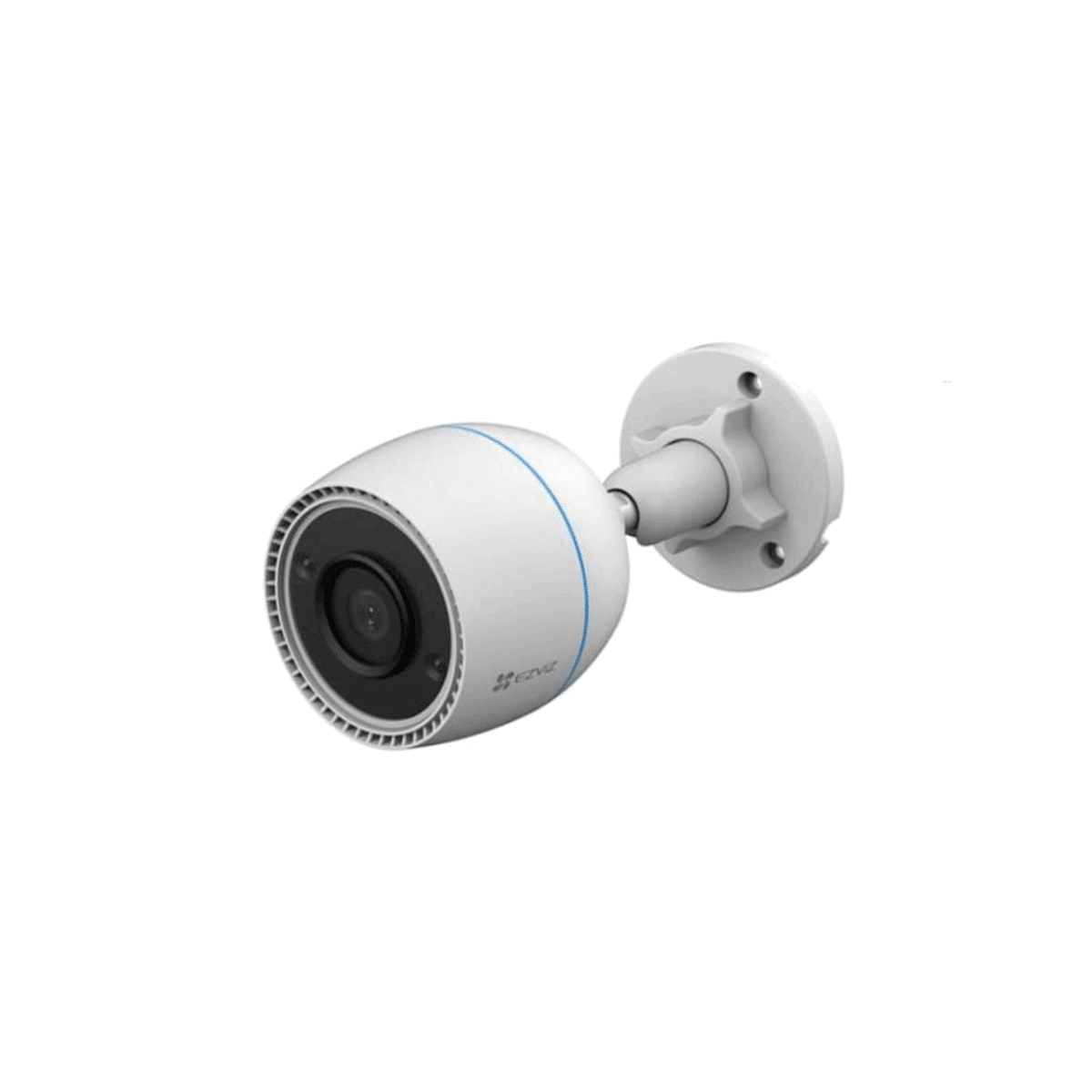

EZVIZ H3C 2MP COLOR WIFI SMART HOME CAMERA
EZVIZ H3c Color Wi-Fi Smart Home Camera
- FHD 1920 × 1080 pixels (2MP) Resolution
- 1/2.7”Progressive Scan CMOS
- 0.01 lux @F2.0, IR-Cut filter with auto-switching
- 3D DNR, Digital WDR ,BLC, IR 98 ft / 30 m
- Color Night Vision: 15m,
- IP67 Weatherproof Design
- AI-Powered Human Shape Detection
- H.265 Video Technology
- Audio Pick-Up
- Active Defense with Strobe Light
- Supports MicroSD Card¹ (Up to 512 GB)
