Product Overview

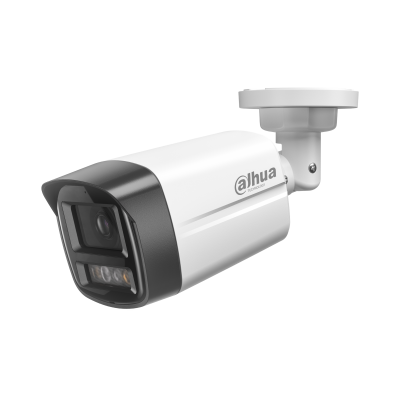

The Dahua DH-IPC-HFW1439TL1P-PV-S6 is a 4MP Full-Color Smart Dual-Light Bullet Network Camera from Dahua’s entry series. It supports full-color night vision, active deterrence (light + sound alarm), built-in microphone and speaker, and AI human detection. The camera is suitable for homes, shops, offices, and outdoor security due to its IP67 weatherproof design.

Camera

• Image Sensor: 1/2.9″ CMOS

• Max Resolution: 4MP (2560 × 1440)

• Min. Illumination:
  – 0.006 Lux @ F1.6 (Color)
  – 0.0006 Lux @ F1.6 (B/W)

• Shutter Speed: 1/3s–1/100,000s

• S/N Ratio: > 56 dB

Lens

• Type: Fixed

• Options: 2.8mm / 3.6mm / 6mm

• Field of View:
  – 2.8mm: H 94° / V 51° / D 110°
  – 3.6mm: H 78° / V 42° / D 92°
  – 6mm: H 49° / V 26° / D 57°

Illumination

• IR Distance: Up to 50m

• Warm Light Distance: Up to 50m

• Smart Dual-Light Mode: Auto switching

Video

• Compression: H.265, H.264, Smart H.265+, Smart H.264+

• Frame Rate: 4MP @ 25/30fps

• Streams: 2 Streams (Main + Sub)

• Image Enhancements:
  – WDR 120 dB
  – BLC / HLC
  – 3D DNR
  – ROI (4 Areas)

Audio

• Built-in Mic & Speaker

• Two-Way Audio Supported

• Audio Compression: G.711a, G.711μ, G.726, PCM

AI Features

• SMD (Smart Motion Detection – Human)

• Active Deterrence:
  – White light warning
  – Sound alarm

• Event Detection:
  – Motion detection
  – Video tampering
  – Network disconnection
  – Audio abnormality
  – IP conflict
  – Illegal access

Network

• Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTSP, RTP, NTP, SMTP, FTP, DHCP, DNS, DDNS, ICMP, IGMP, ONVIF S/T

• Interoperability: ONVIF, CGI, P2P supported

Power

• Power Supply: 12V DC ±30% / PoE (802.3af)

• Power Consumption:
  – Basic: ~2–3W
  – Max (with white light + speaker): ~11–13W

Environmental

• Operating Temperature: –40°C to +60°C

• Humidity: ≤ 95% RH

• Protection Rating: IP67 (Weatherproof)

Physical

• Dimensions: 197.9 × 80.2 × 76.2 mm

• Weight: Approx. 0.35 kg

• Material: Metal + Plastic
