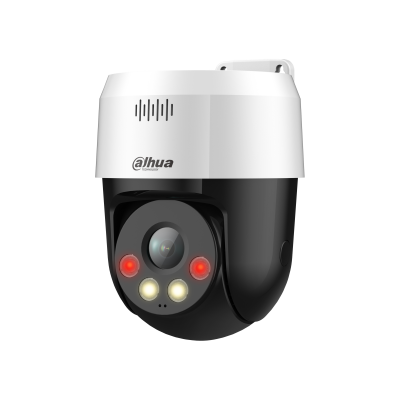

DAHUA 3MP SD2A300NB-GNY-A-PV (MINI PT)

Dahua DH-SD2A300NB-GNY-A-PV (PoE)

The Dahua DH-SD2A300NB-GNY-A-PV is a 3MP Smart Dual-Light Network PT Camera with Pan & Tilt, Active Deterrence, Built-in Mic + Speaker, and PoE support. It offers IR + Warm LED for full-color night vision, human/vehicle detection, and 300 presets.

Camera

• Image Sensor: 1/2.8″ CMOS

• Max Resolution: 3MP (2304 × 1296)

• Frame Rate: 3MP @ 25/30fps

• Electronic Shutter: 1 s – 1/100,000 s

• Minimum Illumination:

  • Color: 0.05 Lux

  • B/W: 0.005 Lux

• Night Vision: IR + Warm Light

• Illumination Distance: Up to 30 meters

• Lens: 4.0mm fixed lens, F2.0

• Field of View:

  • Horizontal: 86.8°

  • Vertical: 47.1°

  • Diagonal: 102.2°

PT (Pan–Tilt)

• Pan Range: 0° – 345°

• Tilt Range: 0° – 80°

• Pan Speed: 0.1°–74°/s

• Tilt Speed: 0.1°–36.4°/s

• Presets: 300 presets

• Power-off Memory: Supported

Video

• Compression:

  • Smart H.265+

  • H.265

  • Smart H.264+

  • H.264H / H.264B

  • MJPEG

• Streams: 2 streams (Main + Sub)

• Image Enhancements:

  • DWDR

  • 2D/3D NR

  • Defog

  • 180° Rotation

Smart Features

• SMD 3.0 (AI Detection):

  • Human detection

  • Vehicle detection

• IVS (Intelligent Video System):

  • Tripwire

  • Intrusion Detection

Active Deterrence

• Built-in Warm Light Alarm

• Built-in Speaker (Customizable Alarm Sound)

  • 1 custom sound

  • Plays up to 10 times

• Built-in Microphone

• Two-way Audio Supported

  ---

  Network

  • Port: RJ45 (10/100 Mbps)

  • Protocols: IPv4/IPv6, HTTP(S), RTSP, RTP, TCP, UDP, DHCP, NTP, DNS, ONVIF Profiles S/T

  • P2P: Supported

  ---

  Storage

  • MicroSD Card: Up to 256GB

  • FTP Upload: Supported
